CADbro, effectively View, Annotate, Analyze 3D data!

CADbrois a budget-friendly 3D CAD viewer with multi-CAD format support, especially designed for everyone to visualize and communicate engineering data. Packed with smart 3D CAD viewing, vivid 3D annotation and advanced analysis technologies CADbro can deliver your team highly efficient internal & external cooperation, greatly shortened time-to-market and largely saved project investment.

View
Annotate
Analyze

Diversified 3D CAD Support / Smart CAD Viewing

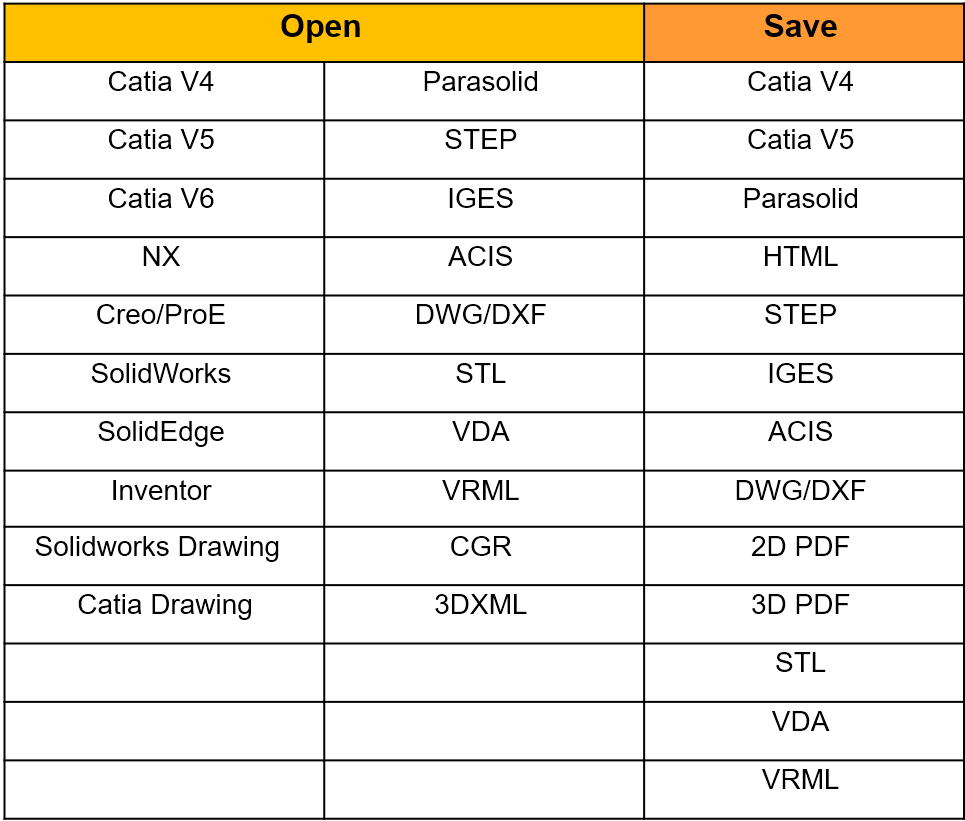

With over 25 kinds of mainstream file formats are supported in CADbro, you can easily access & interact with 2D/3D CAD data without expensive CAD licenses. Especially, you can open & save Catia files directly in CADbro. Plus, smart commands are delivered to help detect open edges and do quick healing, if required.


Key features of CAD Viewing:

•Open third-party files directly

• Export the multiple formats in batches and run the export process at the backstage

• Export lightweight formats like 3D PDF and HTML, making interaction easier style switcher


Vivid 3D Annotation

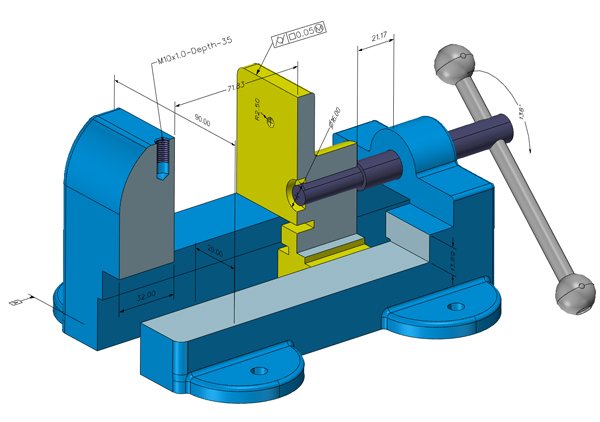

You can easily add dimensions, tolerance, symbols, or texts directly on the imported 3D models. The 3D annotations can replace traditional 2D drawings.


Key features of 3D Annotation:

• Annotate distance, radius/diameter, angular and coordinate

• Annotate datum, feature control symbol and surface finish Symbol

• Smartly measure different geometry information with a single command

• Markup allows to create, edit, and save reviews in 2D or 3D data


Advanced Analysis


With diversified query & analysis tools in CADbro, you can verify the manufacturability of product structure and assembly. The detection of errors in the early stage product development can reduce the cost and save the time.


Key features of Analysis:

• Mass Properties, such as volume, area, mass

• Draft Angle, Wall Thickness, Dynamic Section

• Interference Check, Exploded View, Assembly Animation


Premium Features

You can modify models with CADbro's Direct Edit tools. Any design comments and revision suggestions can be

• Clearly communicated between the different departments or cooperating parties

• Check Open Edges, Auto-Healing, Fill Gap

• Simplify, Move/Offset Face, Copy/Move/Mirror Shape

CADbro, full-featured and budget-friendly 3D CAD viewer!

View, Annotate, Analyze
